Drawing "Reactor (mixer) 12.5 m3"
Technical characteristics
1. Working pressure, MPa (kgf/cm2):
- in the apparatus: 0.4 (4.0)
- in the jacket: 0.6 (6.0)
2. The temperature of the apparatus wall from minus 20 gr. C to plus 250 gr. C, in the jacket the working temperature is up to plus 250 gr. C.
3. The environment in the apparatus and in the jacket is toxic, corrosive.
4. Capacity of the device, m3: 12.5
5. Number of revolutions of the mixer shaft, rpm: 32
6. Drive - motor-reducer MP02-26VK-45.5-22/32 with electric motor VA071-4 U=380 V.
7. Main material:
- device: steel 12Kh18N10T GOST 5632-72
- jackets: steel St3 GOST 380-71
Technical characteristics
1. Working pressure, MPa (kgf/cm2):
- in the apparatus: 0.4 (4.0)
- in the jacket: 0.6 (6.0)
2. The temperature of the apparatus wall from minus 20 gr. C to plus 250 gr. C, in the jacket the working temperature is up to plus 250 gr. C.
3. The environment in the apparatus and in the jacket is toxic, corrosive.
4. Capacity of the device, m3: 12.5
5. Number of revolutions of the mixer shaft, rpm: 32
6. Drive - motor-reducer MP02-26VK-45.5-22/32 with electric motor VA071-4 U=380 V.
7. Main material:
- device: steel 12Kh18N10T GOST 5632-72
- jackets: steel St3 GOST 380-71
Archive content:

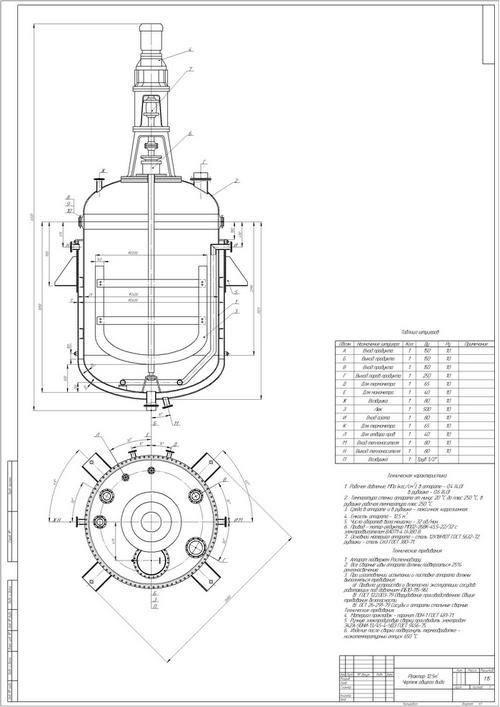

- Reactor 12.5m3. General view drawing (KOMPAS-3D)

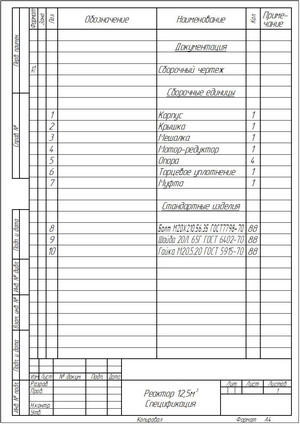

- Specification (KOMPAS-3D)
